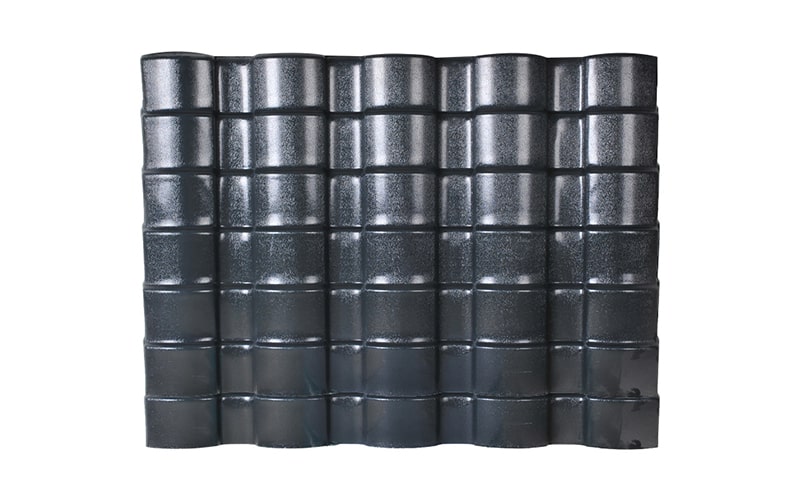

Goeate/Gaozhu Synthetic resin tile, Classical resin tile, Chinese-style resin tile, using ASA high weather resistant engineering plastic (ASA high weather resistant engineering plastic of SABIC,one of the world's top 500 Enterprises) and PVC (polyvinyl chloride resin) as main material, mixing anti-UV agent, shielding agent, antioxidant, modifier and other super weathering chemical ingredients.
The product adopts Europe advanced triple extrusion technology for one-off processing,including
1.The surface layer-ASA layer
2.The middle layer- backbone layer
3.The bottom layer- abrasion resistance layer
Product Feature
1.25 years Life Guarantee, 10 Years Color guarantee.
Goeate/Gaozhu Synthetic resin tile is made of imported extra weather resistant engineering resin,it boasts extraordinary durability in natural environment.it is able to maintain its stable color even under long term exposure to such conditions as ultraviolet radiation,dampness,heat and coldness.
2. Excellent Corrosion Resistance.
Goeate/Gaozhu Synthetic resin tile is able to resist corrosion of various chemical substances such as acid,alkali and salt.The experiment proves that the roofing has no chemical reaction when it is soaked in salt,alkali and various acids below 60% for 2 hours.It is very suitable to use in places where acid rain often falls and coastal areas.
3. Good Sound Insulation and Heat insulation.
The test shows that the roof boasts good noise absorbing effect under the noise of rainstorm and strong wind.
4. Strong Fire Retardant.
Class B1 level tested by the National Fire Department.it is a flame retardant materials.
5.Excellent loading -carrying ability
In Cold area,the roofing is not damaged or broken on the surface even if snow covers on the roof all the year round.The test shows that the roofing neither cracks nor be damaged when the supporting spacing is 660mm and 150kg of load is applied.
Greastest Characteristics

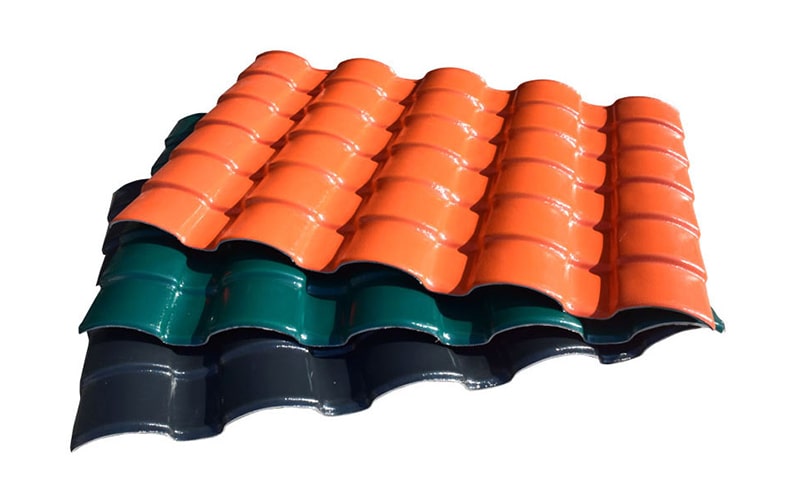

Beautiful 3D shape and Chinese Styled characteristic color,green environmental protection
Application

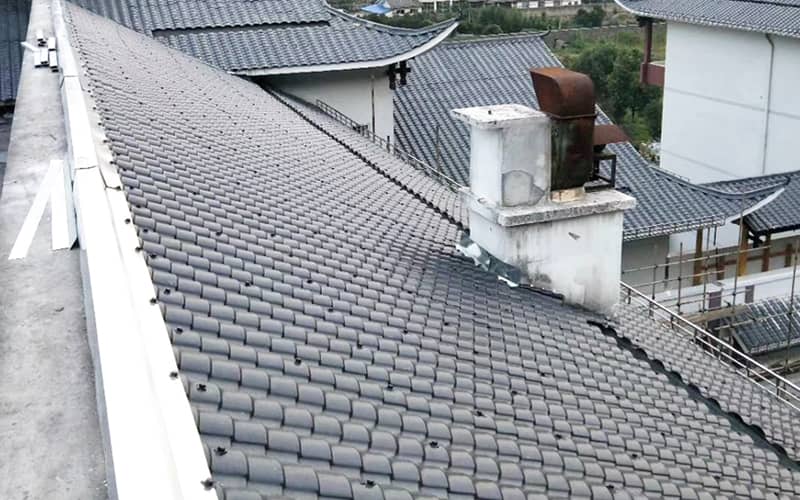

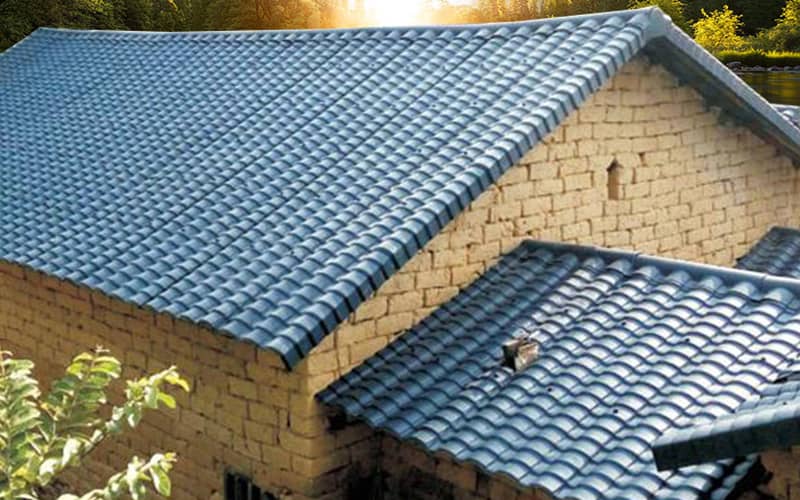

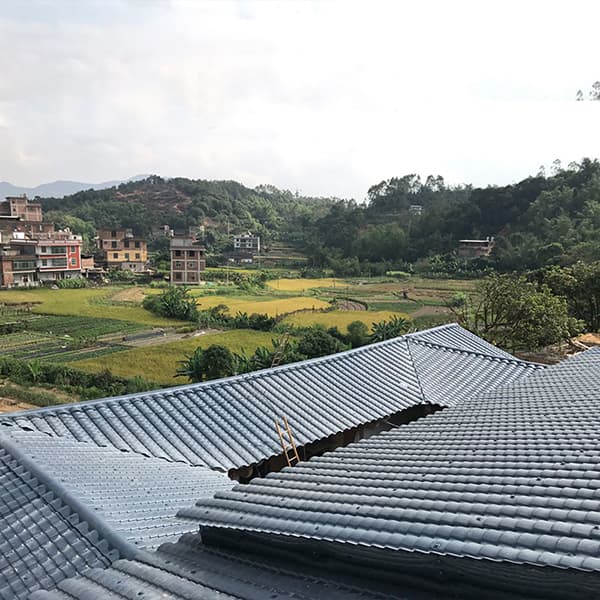

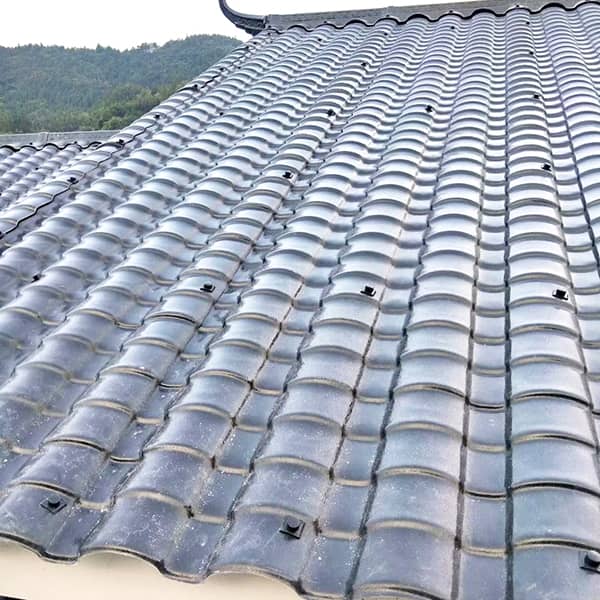

Villa, Residential roof, Beautiful Countryside, Tourist Attraction, Old House Renovation, Garden, etc...
Parameter
| Type | Chinese-Style Resin Tile | ||
| Color | Red, Orange, Blue, Green, Gray, etc. | ||
| Total Width | 1050mm | ||
| Length | Customized (must be accorded to the times of 250mm) | ||
| Thickness | 2.0±0.1mm | 2.5±0.1mm | 3.0±0.1mm |
| Weight | 4.0±0.1(kg/m2) | 5.0±0.1(kg/m2) | 6.0±0.1(kg/m2) |
| Wave Distance | 160(mm) | ||
| Wave Height | 30(mm) | ||
| Pitch | 250(mm) | ||
| Container Loading capacity | Thickness(mm) | SQ.M./20 FCL (28 tons) | SQ.M./40 FCL (28 tons) |
| 2.0 | 6500 | 6500 | |
| 2.5 | 5500 | 5500 | |
| 3.0 | 4500 | 4500 | |
